BJPX-C160T | Medical Three Gas Incubator

Product Introduction

The medical three gas incubator simulates the growth environment of microorganisms, tissues, cells, etc., providing stable temperature, humidity, carbon dioxide concentration, and oxygen concentration. It is widely used for cell and tissue culture, as well as the reproduction and cultivation of certain special microorganisms.

Medical three gas incubators are commonly used for microbial cultivation, cell dynamics research, collection of mammalian cell secretions, carcinogenic or toxic effects of various physical and chemical factors, research and production of antigens, cultivation of hybridoma cells for antibody production, in vitro fertilization (IVF), stem cells, tissue engineering, drug screening and other research fields.

Technical indicators

1. ★ Display mode: 7.0 touch screen display with real-time temperature curve display interface;

2. ★ Disinfection method: 90 ℃ moist heat disinfection, can regularly disinfect the inside of the box;

3. ★ Carbon dioxide sensor type: IR infrared sensor, calibration certificate can be provided, the sensor adopts dual channel dual filter infrared technology, the unique packaging process of the sensor has obtained international patents, and it can withstand high temperature operation of 100 ℃.

4. The inner liner is made of high-quality stainless steel and features a fully rounded design;

5. Heating method: gas sleeve type, microcomputer PID control;

6. ★ Humidification method: natural evaporation method of the bottom reservoir; Humidity inside the box: ≥ 90% RH;

7. Standard HEPA filter, with a filtration efficiency of 99.97% for particles with a diameter greater than or equal to 0.3 μ m; Standard pressure reducing valve;

8. Equipped with alarm system: high and low temperature alarm, CO2 concentration alarm, door not tightly closed alarm, independent overheating protection device;

9. The gas control adopts an electromagnetic valve control system, and the valve body adopts SMC high-precision imported products;

10. The clever integrated structural design avoids damaging the overall harmony of the stainless steel inner liner. The three-dimensional air duct design ensures even distribution of carbon dioxide, and the usable volume of the inner cavity is greater than the nominal volume, making it more practical;

11. Silicone rubber electric heating wire heaters wrapped in aluminum foil are used to uniformly heat all surfaces of the inner cavity, with fast heating and good temperature uniformity;

12. Temperature sensor, using dedicated temperature acquisition technology, with fast response and strong anti-interference ability, ensuring the reliability and stability of the product;

13. Professional customized solenoid valves can sensitively sense gases, and are controlled by gate switches to ensure that the solenoid valve is in a closed state when the box door is open, greatly reducing gas consumption;

14. Anti condensation technology: The all-round heating and insulation technology for glass doors effectively suppresses fogging of the glass and condensation around the door frame, and adds external door sensors to achieve independent detection and adjustment of the external door temperature;

15. ★ The independently developed U-shaped silicone sealing strip adopts environmentally friendly silicone, which effectively adheres to the surface of the glass door and has strong sealing performance;

16. The inner liner is made of high-quality stainless steel and features a semi-circular four corner design, reducing unnecessary inner surface area and minimizing the possibility of bacteria hiding, making it faster and more effectivelandCleaning and disinfection;

17. Standard USB interface for real-time data storage;

18. Protection of personnel - equipped with leakage current and overvoltage protectors;

19. Protection of samples - equipped with over temperature alarm, under temperature alarm, over concentration alarm, and under concentration alarm functions;

20. Equipped with gas switching function, it can simultaneously connect two bottles of carbon dioxide gas;

21. Equipped with a self-priming pump for easy drainage;

22. Standard fixed value gas pressure reducing valve, stable and reliable gas output pressure control;

23. ★ Possess ISO13485 and CE certification;

24. ★ Class II Medical Device Registration Certificate;

25. Calibration certificate from Shandong Institute of Metrology (customized according to factory number).

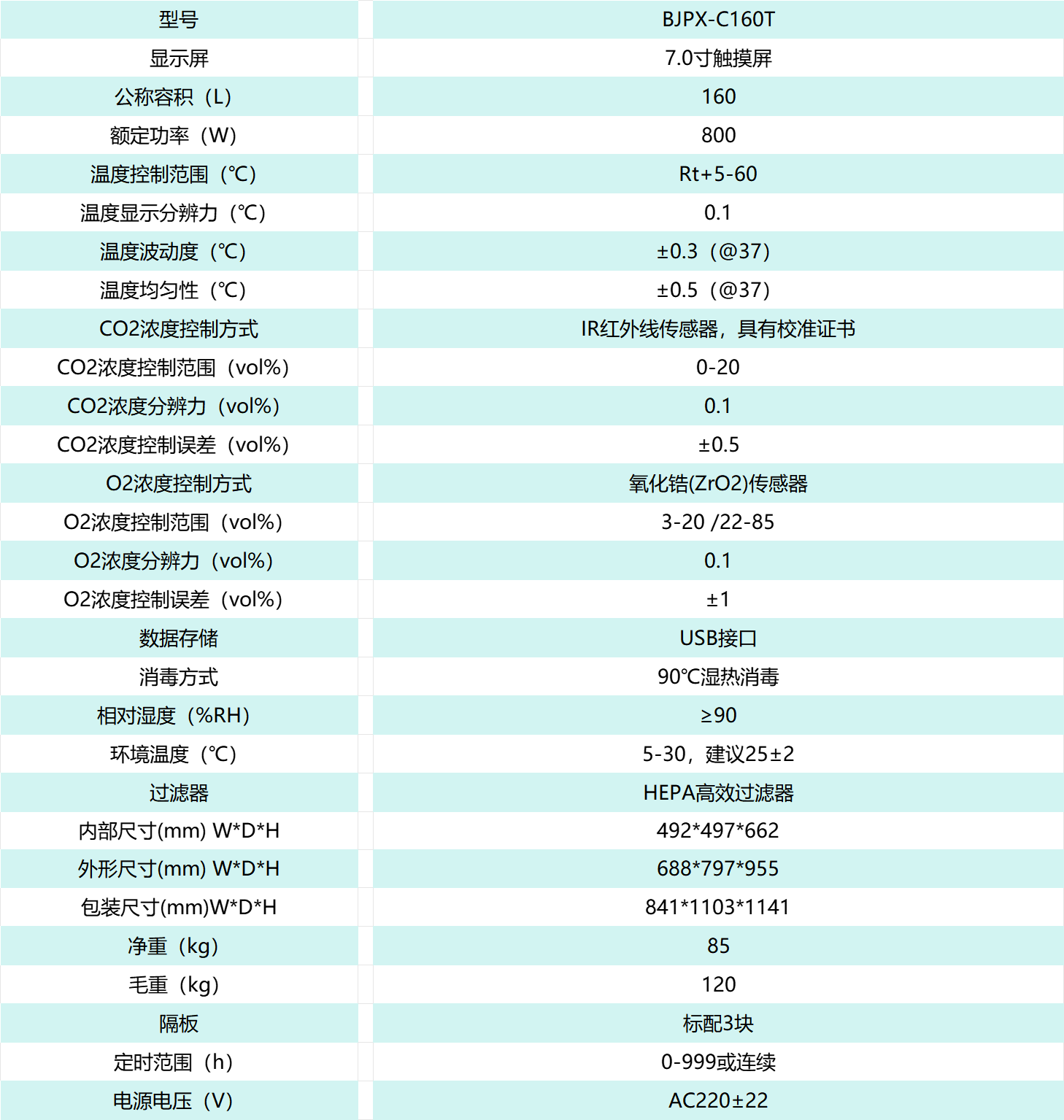

Product parameters



Note:

1. The relevant data were measured at an ambient temperature of 25 ℃ and a relative humidity of no more than 85%.

2. The experiment shall be conducted after the equipment has been running stably for 2 hours.
