Product Introduction
A medical biochemical incubator is a device that simulates a growth environment similar to that of cellular tissue in a living organism within the incubator. This product is suitable for scientific research, university laboratories, and production departments such as environmental protection, agriculture and animal husbandry, drug testing, and aquaculture. It is widely used in medical institutions for the cultivation of human derived microbial samples such as bacteria and molds. It is a universal constant temperature equipment for water analysis, BOD determination, cultivation, preservation, plant cultivation, and breeding experiments of bacteria, molds, and microorganisms.
Technical indicators
1. Precise structural design
① 7.0-inch ultra large touch screen display, easy to understand and operate, convenient for observation.
② Adopting a mirror stainless steel inner liner, with rounded corners for transition, the partition can be freely disassembled and adjusted for height, making it easy to clean and maintain a clean working environment.
③ Unique air duct design ensures temperature uniformity and stability within the studio.
④ Real time dynamic display of temperature change curves in the studio, and standard printer to monitor equipment temperature changes at all times.
⑤ Both sides of the box are equipped with test holes, which can detect the temperature inside the workshop according to actual needs.
⑥ Standard BOD socket for easy use.
⑦ Double layered door design, with a large perspective window on the outer door for easy observation.
⑧ The anti slip and detachment partition design prevents the culture dish from slipping, making it safer.
⑨ Optional USB interface for easy data reading.
2. Quality Function
① High temperature alarm, door opening alarm.
② An independent temperature limiting system, when the studio temperature exceeds the specified temperature, the equipment will automatically shut down to ensure that no accidents occur.
③ In the working state, opening and closing the outer door at will does not affect the normal operation of the incubator, and the glass door is equipped with a mechanical lock as standard to prevent the glass door from being opened and closed at will.
④ Temperature control system, with small fluctuations and timing function, the time can be set to 999 hours and 59 minutes.
⑤ It can be controlled in multiple stages, up to 12 stages can be set, with each stage running for 9999 minutes, simplifying complex experiments.
⑥ Independent refrigeration circuit, using internationally renowned brand compressors, environmentally friendly refrigerant (R134a), efficient and energy-saving.
⑦ Unique automated frost design, with minimal temperature fluctuations during defrosting and power outage recovery function.
⑧ ★ Has ISO13485 quality management certification and CE certification.
⑨ ★ Class II Medical Device Registration Certificate issued by Shandong Provincial Food and Drug Administration.
⑩ ★ Calibration certificate from Shandong Institute of Metrology (customized according to factory number).

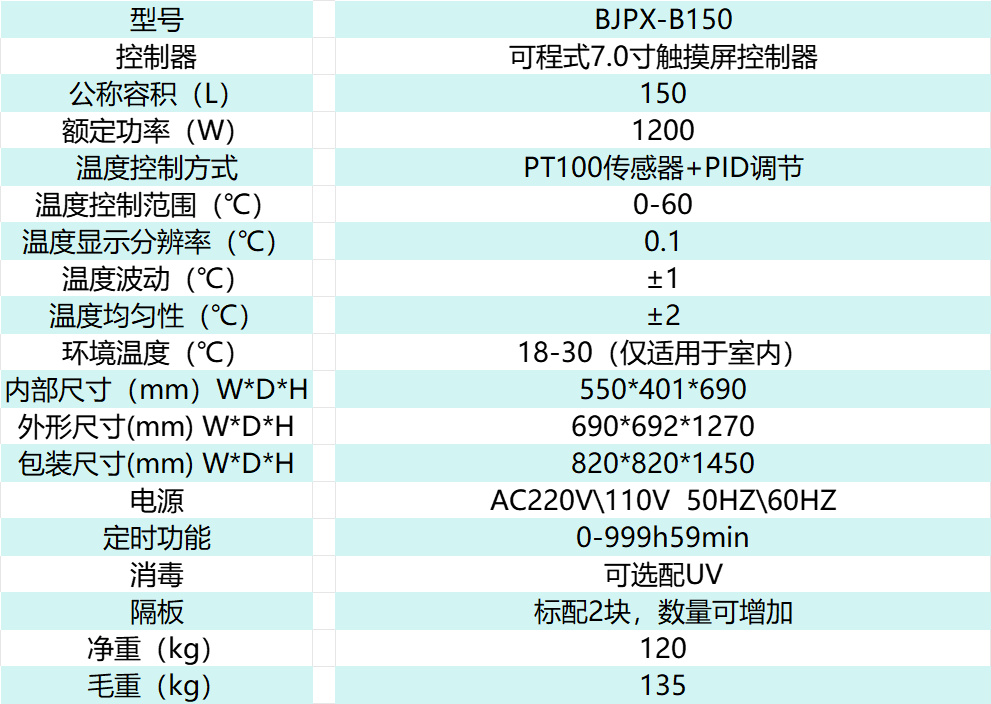

technical parameter
Note:
1. The relevant data were measured at an ambient temperature of 25 ℃ and a relative humidity of no more than 85%.
2. The experiment shall be conducted after the equipment has been running stably for 2 hours.
