BDF-25V368D | Medical Cryopreservation Box

Product Usage:

Medical cryogenic storage box is a low-temperature storage box that can cool and store items normally. Suitable for low-temperature storage of items in epidemic prevention stations, research units, factories, etc.

Structural design:

1. The outer box is made of high-quality cold-rolled steel plate, and the surface is treated with environmentally friendly pottery and spraying technology.

2. The inner box is made of stainless steel material, which is smooth and corrosion-resistant.

3. The upper and lower independent box structures are used to place items as needed, and the temperatures of the two boxes do not interfere with each other, ensuring the accuracy of temperature control for the items.

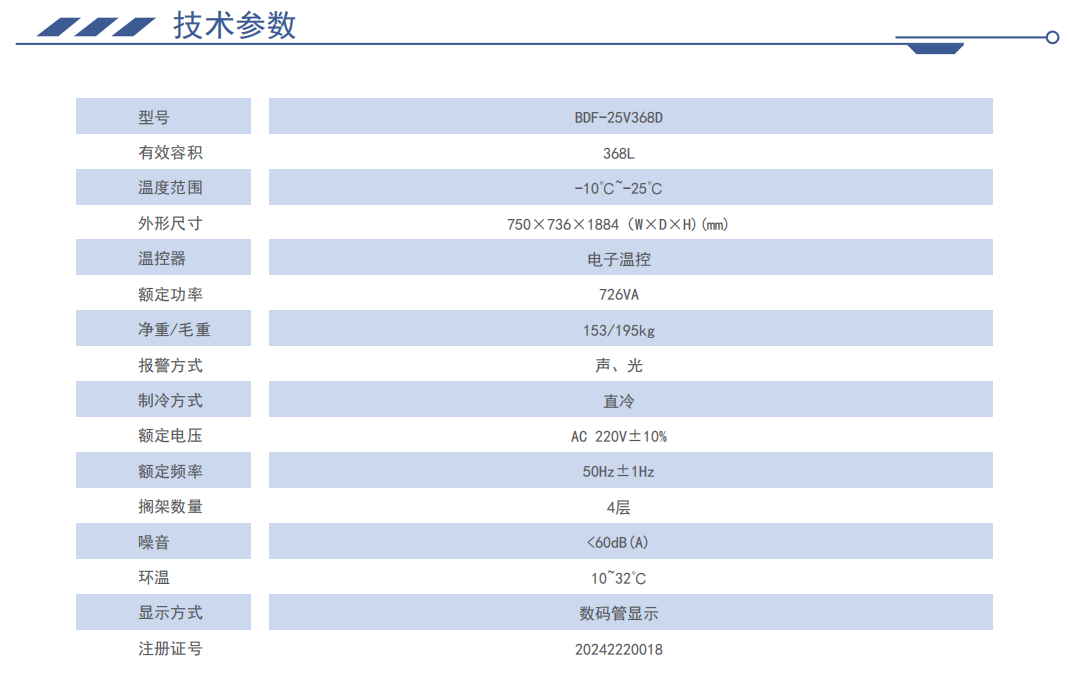

Technical parameters:

1. Dimensions (mm): 750 × 736 × 1884 (width * depth * height)

2. Internal dimensions (mm): Upper chamber: 580X575X563

Lower room: 580X575X563

3. Effective volume (L): 368

4. Shelves: 2 in the upper room and 2 in the lower room

5. Outer door body: 2 polyurethane foam doors

6. Storage temperature: -10 ℃ to -25 ℃

7. Door locks: 2 on each side, totaling 4

8. Rated power supply:~220V

9. Rated frequency: 50Hz

10. Climate type: SN N

11. Alarm method: sound and light

12. Alarm function: high/low temperature, sensor malfunction

13. Rated power: 726VA

Temperature control:

1. Adopting a microcomputer control system with temperature digital display to ensure stable operation;

2. Accurate electronic temperature control, with a display accuracy of 0.1 ℃;

3. Temperature setting deviation protection to avoid misoperation;

*4. Standard USB storage module, capable of storing 8000 records per month, with a maximum storage capacity of 10 years (120 months) of data. After exceeding the limit, the data will be rolled over and overwritten;

5. The refrigeration layout ensures a stable temperature range of -10 to -25 ℃ inside the box;

6. Reliable temperature control, providing the storage environment required for reagents, drugs, and samples;

7. Dual temperature display on the screen allows for intuitive observation of the temperature in each chamber and ensures stable operation.



Refrigeration system:

*1. Internationally renowned brand compressor, fluorine free environmentally friendly and efficient refrigerant, fast cooling speed and high cooling efficiency;

*2. The evaporator adopts high-efficiency copper tubes for heat transfer, embedded on the inner box wall, and cools by conduction, saving internal space;

*3. Renowned brand condensing fan, energy-saving and efficient, with reliable performance;

4. The high-density insulation foam layer uses environmentally friendly cyclopentane foaming agent, which has good insulation effect;

5. Each box has a separate refrigeration system, and the temperatures of the two chambers do not affect each other.

Security guarantee:

1. Equipped with high and low temperature alarm, sensor fault alarm, and abnormal door opening and closing alarm functions inside the box;

2. Equipped with sound buzzer alarm mode;

3. Sensor malfunction safe operation mode (display sensor and control sensor are backup to each other);

4. Temperature controller keyboard lock and password protection function to prevent arbitrary adjustment of operating parameters;

5. Power outage protection: The product has a delayed start function to prevent multiple devices from simultaneously causing circuit breaker protection when the power grid is restored.

user-friendly design

1. The upper and lower room doors have separate safety lock designs, with two locks for each box to ensure the safety of stored items;

2. Dual temperature digital display for easy observation;

3. Each upper and lower room is equipped with standard testing holes, making it convenient for users to monitor or collect data for experiments;

4. Height adjustable shelf design, adjusting the height according to different items to improve space utilization;

5. Universal brake wheel design, convenient for users to move devices;

6. Double layered door seals and inner and outer door designs lock in air conditioning to prevent leakage, resulting in more uniform temperature and more energy-efficient products.
