BJPX-C160S | Medical CO2 incubator (water jacket)

Product Introduction

      MedicalA carbon dioxide incubator is a device used for in vitro cultivation of cells/tissues by simulating a growth environment similar to that of cells/tissues in living organisms, such as a constant pH value (7.2-7.4), stable temperature (37 ° C), high relative humidity (90%), and stable CO2 level (5%).

Suitable for a wide range of fields such as cytology, biology, oncology, genetics, immunology, virus research, and genetic engineering research. It is an ideal device for cell, tissue, and bacterial cultivation in modern medical, pharmaceutical, biochemical, and agricultural science research institutions and industrial production departments.

Technical indicators

1. ★ Display mode: 7.0 touch screen display with real-time temperature curve display interface;

2. ★ Disinfection method: UV disinfection, which can regularly disinfect the inside of the box;

3. ★ Carbon dioxide sensor type: IR infrared sensor, calibration certificate can be provided, the sensor adopts dual channel dual filter infrared technology, the unique packaging process of the sensor has obtained international patents, and it can withstand high temperature operation of 100 ℃.

4. The inner liner is made of high-quality stainless steel and features a fully rounded design;

5. Heating method: water jacket type, microcomputer PID control;

6. ★ Humidification method: natural evaporation method of humidification tray; Humidity inside the box: ≥ 90% RH;

7. Equipped with dual HEPA filters as standard, the filtration efficiency reaches 99.97% for particles with a diameter greater than or equal to 0.3 μ m; Standard pressure reducing valve;

8. Equipped with alarm system: high and low temperature alarm, CO2 concentration alarm, door not tightly closed alarm, independent overheating protection device;

9. The control of carbon dioxide adopts an electromagnetic valve control system, and the valve body adopts SMC high-precision imported products;

10. The clever integrated structural design avoids damaging the overall harmony of the stainless steel inner liner. The three-dimensional air duct design ensures even distribution of carbon dioxide, and the usable volume of the inner cavity is greater than the nominal volume, making it more practical.

11. The water jacket insulation method has good insulation effect and small temperature fluctuations under the same conditions.

12. Silicone rubber electric heating wire heaters wrapped in aluminum foil are used to uniformly heat all surfaces of the inner cavity, with fast heating and good temperature uniformity.

13. The temperature sensor adopts specialized temperature acquisition technology, with fast response and strong anti-interference ability, ensuring the reliability and stability of the product.

14. Professional customized solenoid valves can sensitively sense CO2 gas, and are controlled by gate switches to ensure that the solenoid valve is in a closed state when the box door is open, greatly reducing gas consumption.

15. Anti condensation technology: The all-round heating and insulation technology for glass doors effectively suppresses fogging of the glass and condensation around the door frame, and adds external door sensors to achieve independent detection and adjustment of the external door temperature.

16. ★ The independently developed U-shaped silicone sealing strip adopts environmentally friendly silicone, which effectively adheres to the surface of the glass door and has strong sealing performance.

17. Full rounded design reduces unnecessary inner surface area, thereby reducing the possibility of bacteria hiding, making it faster and more effectivelandCleaning and disinfection.

18. Standard USB interface for real-time data storage.

19. Protection of personnel - Install leakage current and overvoltage protectors.

20. Protection of samples - equipped with over temperature alarm, under temperature alarm, over concentration alarm, and under concentration alarm functions.

21. The water jacket medical carbon dioxide incubator has alarms for low and high water levels.

22. ★ Possess ISO13485 and CE certification;

23. ★ Class II Medical Device Registration Certificate;

24. ★ Calibration certificate from Shandong Institute of Metrology (customized according to factory number).

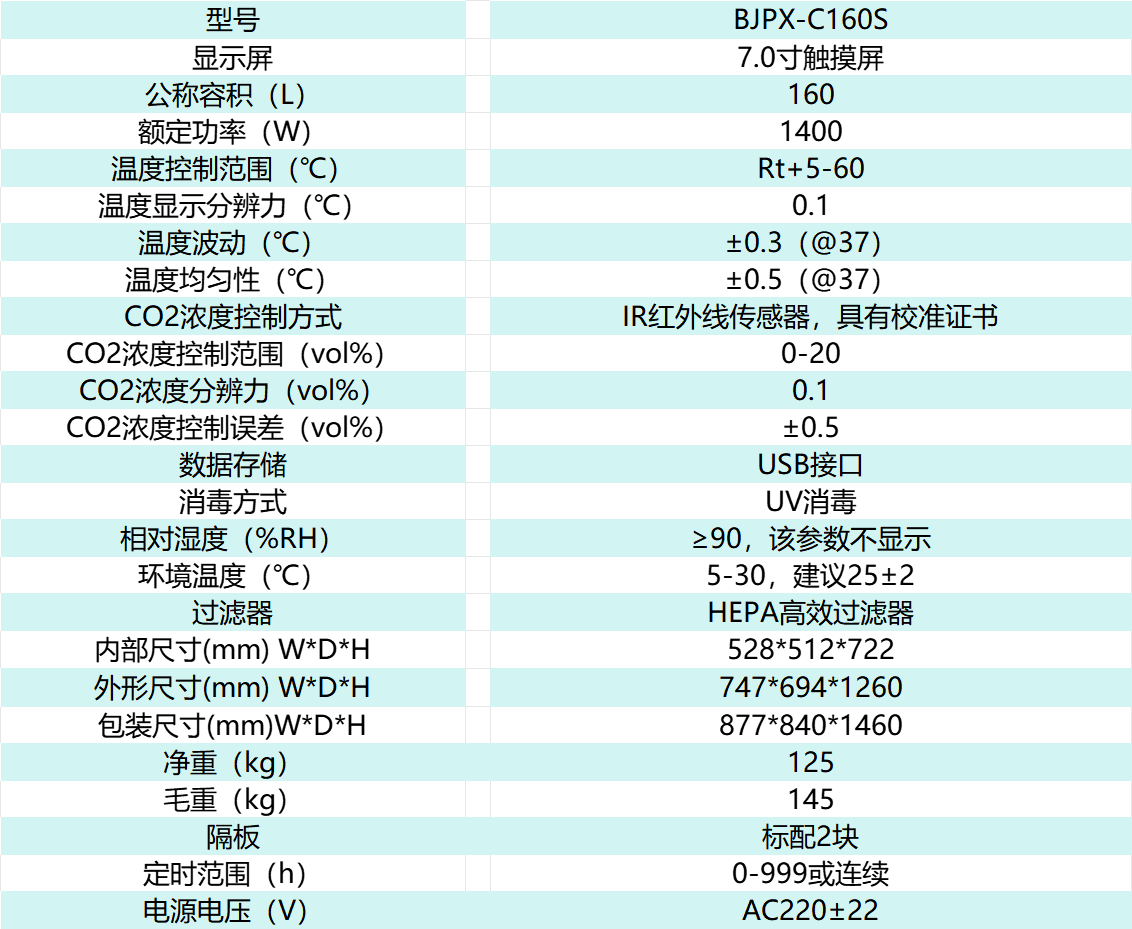

Product parameters


Note:

1. The relevant data were measured at an ambient temperature of 25 ℃ and a relative humidity of no more than 85%.

2. The experiment shall be conducted after the equipment has been running stably for 2 hours.
