BJPX-SP03 | Platelet Constant Temperature Storage Box

Product Introduction

After the completion of platelet thawing, it needs to be continuously shaken and stored in a constant temperature environment of 20 ℃ -24 ℃ while waiting for infusion to the patient. The BJPX-SP series platelet constant storage box is a device made according to this requirement. When thawed platelets are placed flat on the inner cavity storage rack, the machine can continuously output amplitude of 50mm or 35mm with a frequency of 60 cycles per minute in continuous left and right reciprocating and horizontal oscillation, solving the problem of safe storage of platelets.

Suitable for hospitals, blood centers, clinical transfusion departments, research institutions, university laboratories, bioengineering, disease control centers, etc.

Technical indicators

1. Precise structural design

        ①The overall equipment is produced by integrated molding injection molding, with a complete appearance structure and a matte texture on the surface, making it easy to clean

② Real time temperature display

③ The inner liner is made of aluminum alloy stamping, which facilitates temperature transmission and ensures internal integrity

④ The insulation layer is made of polyurethane foam, which has good insulation effect and effectively blocks the exchange of internal and external heat and cold

⑤ ★ DC brushless metal gear reduction motor, effectively ensuring smooth operation of equipment

⑥ ★ Standard battery, can be used for a short period of time without power input

⑦ Equipped with humanized handles and straps, effectively reducing the burden on the human body when moving.

2. Temperature control

① ★ Advanced semiconductor refrigeration modules are used to quickly respond to temperature control, ensuring that the equipment meets the requirements for use

② ★ Adopting high-sensitivity temperature sensor, ultra fast response, microprocessor PID control temperature, accurate temperature control

③ Built in circulation system ensures uniformity of temperature inside the chamber

3. Location of use

① The device can be connected to an AC 220V power supply or a DC 12V power supply, which can meet both fixed and mobile use requirements

4. Security protection

① Protection of personnel - the accessible location is made of polymer material, effectively reducing the risk of electric shock

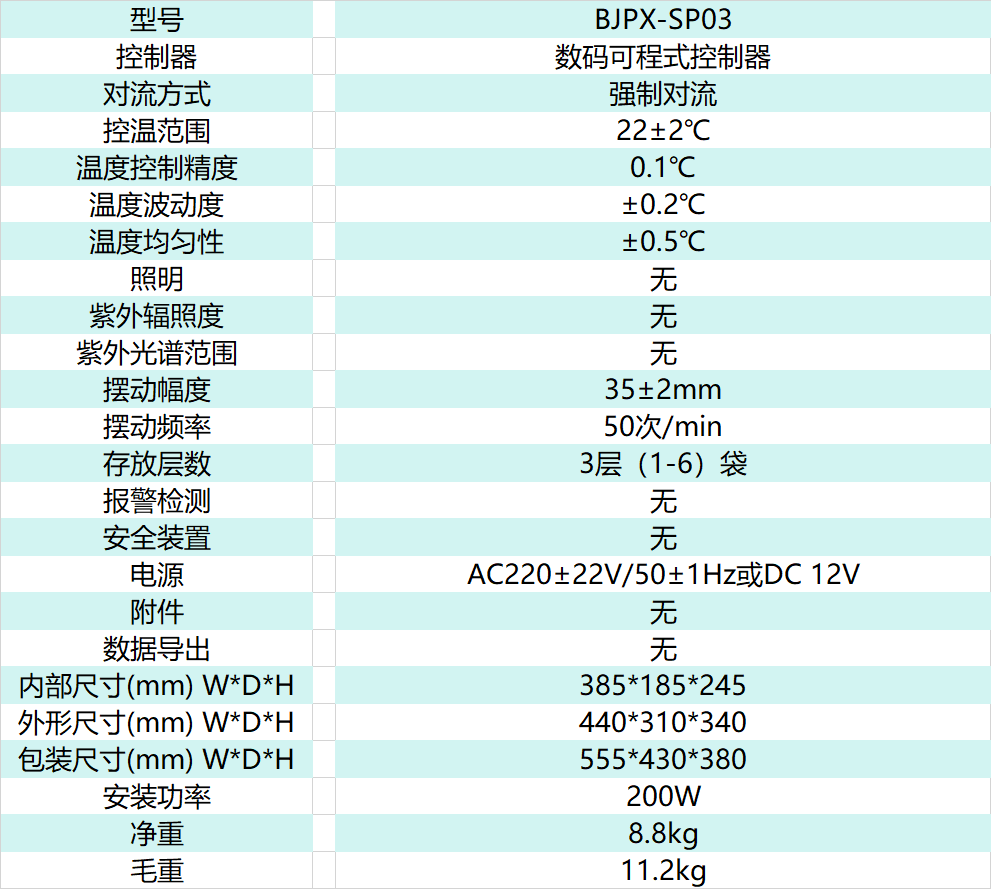

technical parameter


Note:1. The relevant data were measured at an ambient temperature of 25 ℃ and a relative humidity of no more than 85%.
