BJPX-SP10 | Platelet Constant Temperature Storage Box

Product Introduction

After the completion of platelet thawing, it needs to be continuously shaken and stored in a constant temperature environment of 20 ℃ -24 ℃ while waiting for infusion to the patient. The BJPX-SP series platelet constant storage box is a device made according to this requirement. When thawed platelets are placed flat on the inner cavity storage rack, the machine can continuously output amplitude of 50mm or 35mm with a frequency of 60 cycles per minute in continuous left and right reciprocating and horizontal oscillation, solving the problem of safe storage of platelets.

Suitable for hospitals, blood centers, clinical transfusion departments, research institutions, university laboratories, bioengineering, disease control centers, etc.

Technical indicators

1. Precise structural design

① Compact structure, small overall space occupation, suitable for use on a work desk

② The shell adopts high-quality cold pressing plate and overall spraying technology, with a beautiful appearance and easy cleaning

③ The inner liner is made of 304 mirror stainless steel material for easy internal cleaning.

④ The insulation layer is made of polyurethane foam, which has good insulation effect and effectively blocks the exchange of heat and cold inside and outside.

⑤ ★ Use silent AC servo motors to effectively ensure smooth operation of the equipment.

⑥ ★ Adopting double-layer electric tempered glass doors, the insulation effect is good, effectively avoiding fogging of the observation window and maintaining a constant temperature of the box for a long time

⑦ The device has an automatic defrosting function to prevent the condenser from freezing due to prolonged operation

⑧ Adopting imported Zanusi compressor for refrigeration, it has low noise, long service life, good refrigeration effect, stable quality, and uses R134A non CFC environmentally friendly refrigerant

        ⑨The tray is produced using a separate mold, which is smooth, sturdy, durable, and has good ventilation

2. Temperature control

① ★ Adopting high-sensitivity temperature sensor, ultra fast response, microprocessor PID control temperature, accurate temperature control

② Built in circulation system ensures uniformity of temperature inside the chamber

    3. Humanized design structure

① Equipped with high-quality rubber foot pads, wear-resistant and anti slip, and universal casters for easy mobility

② ★ Automatic shutdown when opening the door, automatic resumption of operation when closing the door

        ③★7.0-inch true color touch screen display, multiple sets of data are displayed on one screen, real-time data curves and fault information are quickly queried, and the operation interface supports switching between Chinese and English

4. Security protection

① Protection of personnel - equipped with leakage current and overvoltage protectors

② Protection of samples - with over temperature alarm, the alarm will be triggered when the temperature inside the box exceeds the set temperature range

③ Protection of instruments - adding temperature control switches. When the temperature is too high, the switch will disconnect to prevent damage to the instrument caused by excessive temperature

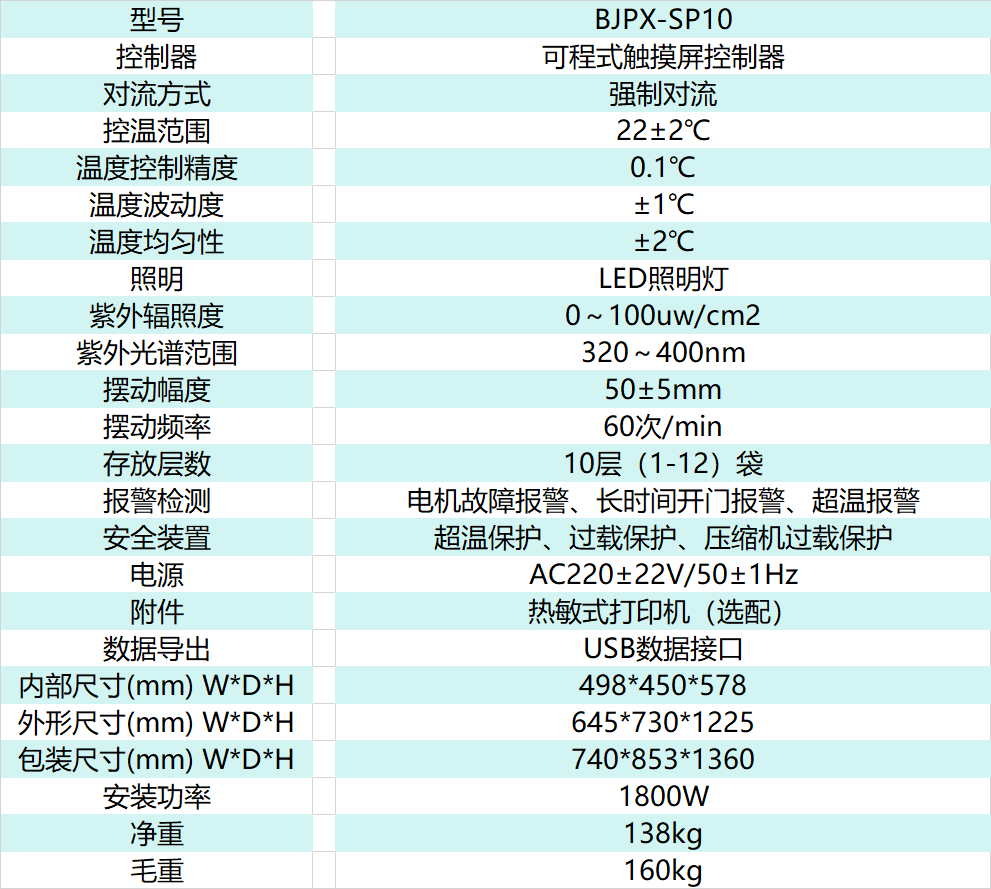

technical parameter


Note:1. The relevant data were measured at an ambient temperature of 25 ℃ and a relative humidity of no more than 85%.
