BJPX-SL220-L Ⅱ | Vertical Double Open Double Control Constant Temperature Shaker (Oscillatory Incubator)

Product Introduction

The vertical double open double controlled constant temperature shaker is often placed on the ground and shaken evenly for cultivation. Widely used in experiments such as bacterial cultivation, fermentation, hybridization, biochemical reactions, enzyme and tissue research that require high temperature and oscillation frequency. Suitable for mid batch production of experiments

Product Features

1. Precise structural design

The clever integrated structural design avoids damaging the overall harmony of the stainless steel inner liner, greatly improving product quality.

The unique design of the air duct makes the temperature inside the box more uniform, and the temperature sensor collects information more accurately.

③ The usable volume of the inner cavity is greater than the nominal volume, making it more practical.

The upper beaker clip model is optional, and the lower universal spring holder can be placed in containers of different specifications, with high selectivity

2. Temperature control

① The temperature is controlled by "super fuzzy PID", which has the advantages of smaller temperature overshoot, faster stabilization time, and better temperature control accuracy compared to traditional PID control methods.

3. Speed control

The power system of the oscillating disk adopts a DC brushless motor, which is controlled by PWM to adjust the speed. The acceleration control circuit ensures that the oscillator starts slowly, accelerates smoothly, and ensures the safety of the experimental sample.

Three dimensional integrated three wheel drive, smooth, stable, durable, and reliable operation.

4. Technology for preventing condensation water

The external door adopts glass electric heating technology, effectively suppressing fogging of the glass and condensation around the door frame.

The independently developed silicone sealing strip adopts environmentally friendly silicone material, which effectively adheres to the surface of the outer box, has stronger sealing performance, and better temperature insulation of the box.

Hollow tempered glass door, convenient for observing the inside of the box from various angles without opening the door at any time.

5. Sterility

The use of UV lamps can regularly disinfect the interior of the box using ultraviolet radiation, effectively killing the circulating air inside the box and preventing contamination during cell culture.

② The inner liner is made of high-quality 304 stainless steel, with a semi-circular four corner design to reduce unnecessary inner surface area, thereby reducing the possibility of bacteria hiding, making bottom cleaning and sterilization faster and more effective.

6. Security protection

① Protection of personnel - equipped with leakage current and overvoltage protectors.

② Protection of samples - with over temperature alarm, if the temperature inside the box exceeds the set temperature by 1 ℃, an alarm will be triggered.

7. Qualification certification

Has ISO9001 quality management certification and CE certification.

Calibration certificate of Shandong Institute of Metrology (customized according to factory number).

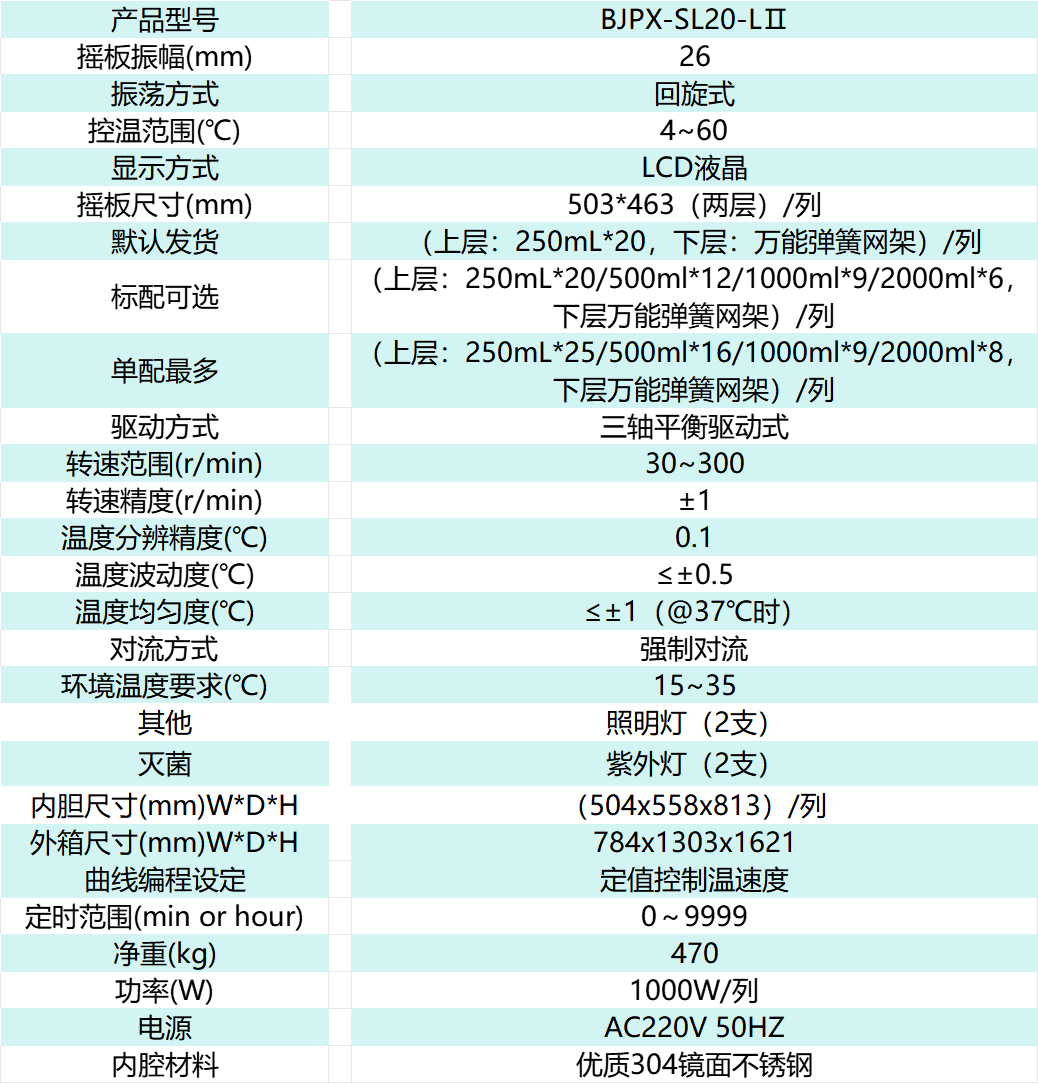

technical parameter

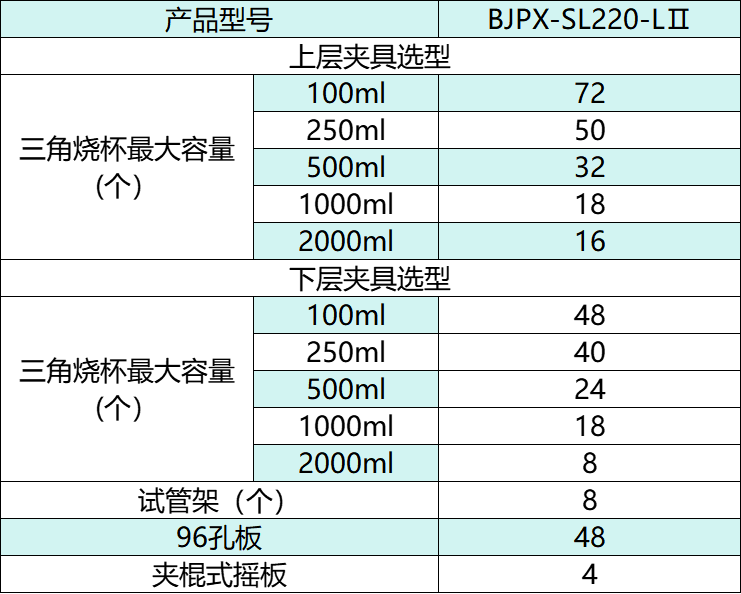

Fixture selection


Note: 1. The fixture selection table shows the maximum optional capacity, please choose according to your needs.

2. All the above data are subject to modification without prior notice, and our company reserves the right of final interpretation.
