BJPX-HGZ30L | Electric hot air drying oven

Product Introduction

This product is used for baking, drying, disinfecting, melting wax, and sterilizing non flammable and non-volatile materials in industrial and mining colleges, biopharmaceuticals, enterprises, scientific research, food processing, medical institutions, and various laboratories. For example, drying of experimental samples, food, glassware, thermal hardening, thermal denaturation, thermal softening of chemical substances, and removal of moisture; Dry heat sterilization of instruments and vessels in biotechnology; Aging and drying of electronic components.

Technical indicators

1. ★ Display mode: LCD display screen, with real-time temperature and set temperature display interface; Equipped with temperature deviation calibration function and temperature self-tuning function.

2. Temperature sensor type: PT100 temperature sensor

3. Heating method: stainless steel heating tube direct heating type;

4. ★ Adopting PID microcomputer temperature control technology, with timing function, timing range of 9999 hours/minute, parameter memory function, automatic restoration of operation upon incoming call

5. The inner liner is made of high-quality stainless steel and features a semi-circular and four corner design;

6. It has an over temperature alarm system function, which can set a limit temperature. If the limit temperature is exceeded, the heating output will be automatically interrupted to prevent damage to the instrument caused by excessive temperature.

7. The unique combination of bottom air blowing and bottom heating in the centrifugal fan blades of the turbine is reasonable, and the vertical double air duct vertical hot air circulation design makes the temperature distribution in the working room more uniform, meeting the requirements of high-precision experiments.

8. Independent fan switch, determine whether to turn on convection according to heating needs

9. The outer door is designed with high-temperature resistant silicone sealing strips, using high borosilicate high-temperature resistant glass and a perspective window structure design, making it easy to observe the internal situation of the equipment.

10. The insulation layer adopts aluminum silicate cotton, which has good insulation performance and low surface temperature of the equipment, reducing the influence of external environmental temperature.

11. ★ Optional; Optional partition frame, Fuma casters; Optional USB interface and printer.

12. ★ Possess ISO9001 quality management certification, non-medical device certification, and CE certification;

13. ★ Calibration certificate from Shandong Institute of Metrology (customized according to factory number).

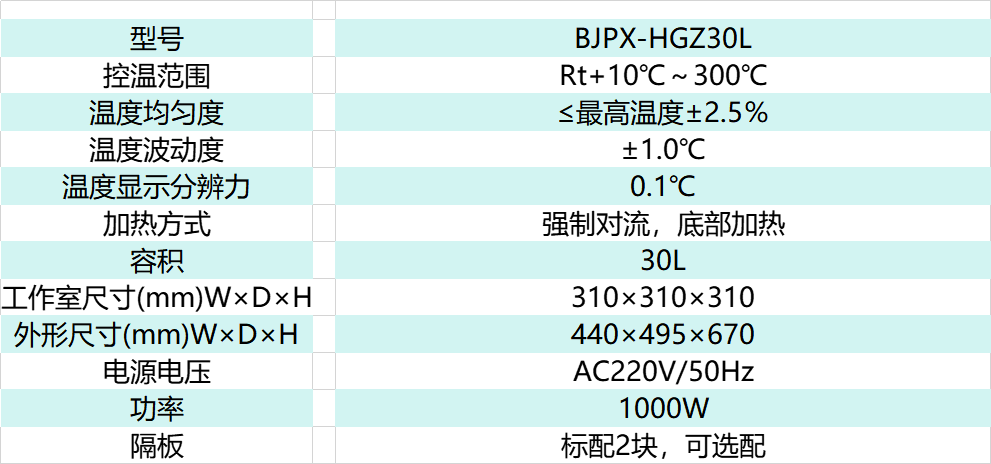

Product parameters


Note:

1. The relevant data were measured at an ambient temperature of 25 ℃ and a relative humidity of no more than 85%.

2. The experiment shall be conducted after the equipment has been running stably for 2 hours.
