BJPX-SDW20-L | Stacked horizontal constant temperature shaker (oscillating incubator)

Product Introduction

The stacked horizontal constant temperature shaker is a high-performance product developed specifically for small laboratories with multiple unit stacking, multifunctional combinations, multi amplitude rotation, and multi temperature zone control. It can be placed on a single unit, or stacked on two or three units, and can be used to load multiple 500ml triangular flasks in an area of less than 0.6 square meters. One device can meet the experimental needs of dynamic and static cultivation, greatly meeting the experimental needs of experimenters for product miniaturization, large loading, and flexibility. It is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research with high requirements for temperature and oscillation frequency. It has extensive and important applications in research fields such as medicine, biology, molecular biology, pharmaceuticals, food, and environmental protection.

Scope of application

Cell culture, extraction experiment, sample mixing, staining and decolorization, hybridization experiment, solubility experiment, plasmid purification, bacterial suspension preparation, elution process

Product Features(The technical indicators marked with ★ are unique to BIOBASE)

1.Multiple methods for monitoring device temperature, complete recording of information, and traceability of quality control data;

① Real time printing of temperature records, monitoring device temperature changes at any time (optional);

② The device has USB data export function, achieving data traceability and facilitating quality monitoring;

2. The machine is controlled by a microprocessor and has automatic system detection function;

③ High/low temperature alarm, abnormal shutdown alarm, so that the staff can always know whether the equipment is running normally;

④ If the oscillation (motor) malfunctions and the equipment door is not tightly closed, the alarm will automatically sound and light;

3.High quality brushless DC motor, with low vibration, low noise, high efficiency, maintenance free, energy-saving, and long-lasting operation;

4.5-inch touch screen/LCD display screen, clear and intuitive interface, easy to operate;

5.Equipped with ultraviolet disinfection function, maintaining a clean and sterile environment inside the cavity;

6.Equipped with standard LED lighting function, the box door lighting automatically turns on when opened, greatly facilitating customer operation and use;

7. Equipped with power-off recovery function, the device can automatically resume operation according to the original set program in the event of a sudden power loss from the external power supply and a new power supply;

8. Imported compressor, no noise, long service life, good refrigeration effect, stable quality; Refrigeration method: Air cooled R290 non fluorocarbon refrigerant, which is currently an environmentally friendly refrigerant required internationally. The exhaust gas emitted is harmless to human health and the atmosphere;

9.Electric heating tempered glass perspective window, large viewing window, easy to observe, good insulation effect, anti condensation;

10.304 grade mirror stainless steel inner cavity, ensuring that the studio never rusts;

11. Up to three units can be stacked, still occupying only the area of one shaker;

12. Up/down flip door design, convenient pull-out tray, flexible operation;

13. Single axis balanced drive technology with ultra-low noise reduction;

14.★.Having ISO9001 quality management certification and CE certification;

15. ★ Calibration certificate from Shandong Institute of Metrology (customized according to factory number).

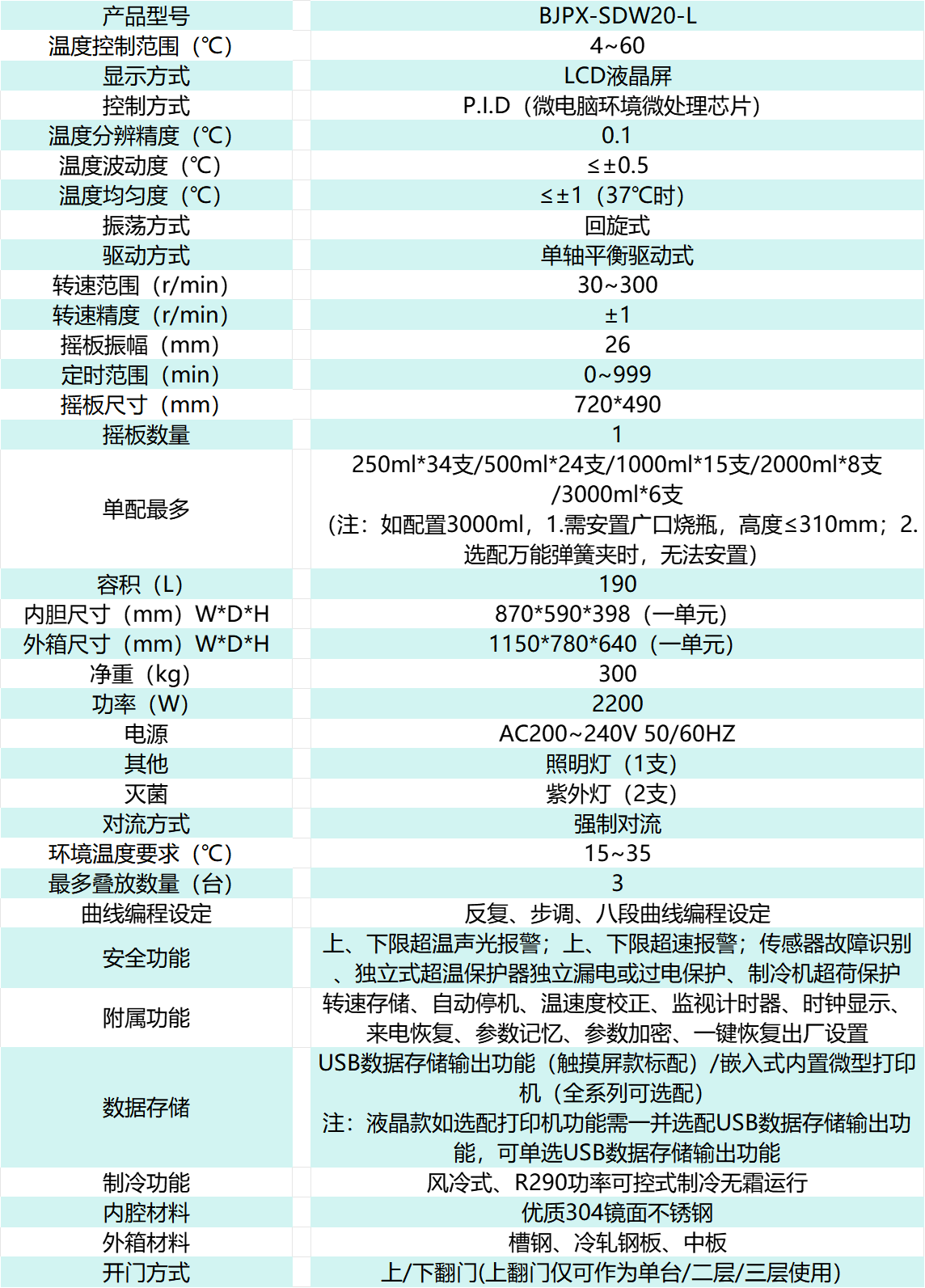

Product parameters

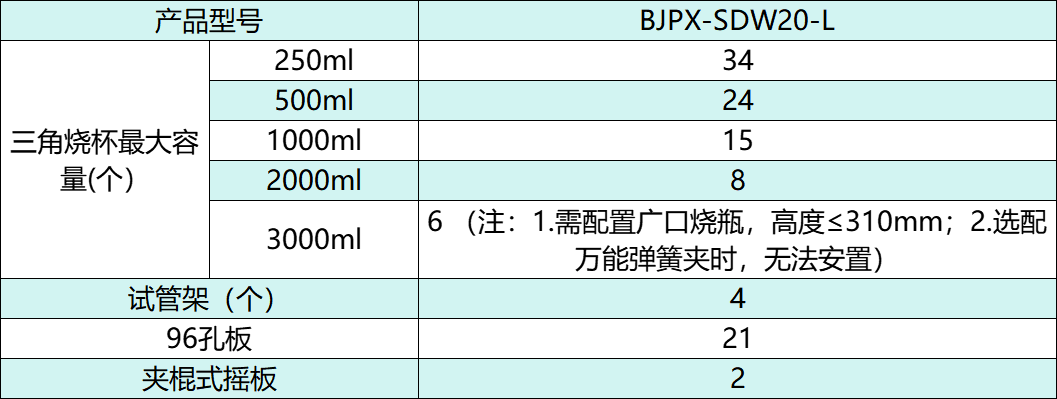

Fixture selection


Note: The fixture selection table is for * * optional capacity, please choose according to your needs.

All the above data are subject to modification without prior notice, and our company reserves the right of final interpretation.
