Product Introduction
The stacked desktop constant temperature shaker is a small footprint and large capacity constant temperature cultivation and production equipment specially developed for modern biotechnology production units. One person, one machine saves space, and the stacked use is more flexible. It is widely used in bacterial cultivation, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research that require high temperature and oscillation frequency. It has extensive and important applications in research fields such as medicine, biology, molecular biology, pharmaceuticals, food, and environmental protection.
The stacked desktop shaker combines the constant temperature incubator and shaker into one machine, serving two purposes. The stacked desktop shaker can be combined with two or three layers at will, occupying a small area and providing ample space for use. The single mini design makes full use of the limited space in the laboratory and can be placed under or on the laboratory table. It is equipped with a refrigeration system while maintaining a small volume, providing a highly scalable temperature control range for cultivation and reaction, thus providing users with more choices for use. Each layer is independently controlled and can be operated simultaneously at different temperatures and speeds. One or more layers can also be selected as needed. It has automatic power-off function for overheating and abnormal situations, as well as power-off recovery function, which avoids data loss caused by power outages and crashes. The fluorine free and environmentally friendly refrigeration method has low noise and excellent refrigeration effect. The humanized design of the door stop function provides a safer operating environment for users, making it a powerful tool for optimizing biological cultivation screening. Multiple oscillation fixtures and pallets are available to meet customers' flexible and diverse experimental needs
Product Features
1.★Multi layer structure, small footprint and large usage space;
2.★Each layer can be independently controlled, with temperature and speed set separately;
3. PID microcomputer intelligent temperature controller, stable temperature control;
4.★5-inch touch screen, clear and intuitive parameter setting and observation; The encryption and locking function of the operation interface prevents repeated operations and human errors
5.★Personalized program design, which can preset up to ten programmable programs to achieve scheduled operation of temperature, speed, and time;
6. Equipped with UV sterilization function;
7. Equipped with a memory function for operating parameters, avoiding tedious operations and password locking to prevent human error;
8. Equipped with call recovery function, the device is not affected by power interruption and can automatically resume operation according to the original set program;
When the measured temperature deviates from the set temperature by more than 3 ℃, the heating will automatically stop and an audible and visual alarm will be issued;
10.★The large perspective window and built-in lighting provide a clear and distinct working state;
11. The whole machine features a silent design, an electrostatically sprayed plastic box, an electrically heated tempered glass super large visible window, and a luxurious and beautiful appearance;
12. No need to input refrigeration coefficient, fully automatic temperature adjustment, avoiding tedious temperature adjustment settings;
13. High performance constant temperature function to prevent sample evaporation and drying up;
14. Safety protection design, achieving triple safety protection for personnel, samples, and equipment;
15.★Protector (adjustable), independentLeakage protection, overcurrent tripping protection, and refrigeration overload protection. Auxiliary functions: automatic shutdown, automatic startup, monitoring timer, call recovery, parameter encryption;
16. Parameter memory, temperature calibration, RS232 interface, and embedded micro printer data output, etc;
17. Control the acceleration circuit to ensure that the shaker starts slowly and accelerates smoothly, ensuring the safety of the experimental sample;
18. Mirror stainless steel lining, oxidized aluminum shaking plate, spring, and flask clamp, ensuring that the instrument is never corroded;
19. Flexible and convenient, with a wide variety of detachable tray accessories;
20.★Having ISO9001 quality management certification and CE certification;
21. ★ Calibration certificate from Shandong Institute of Metrology (customized according to factory number).

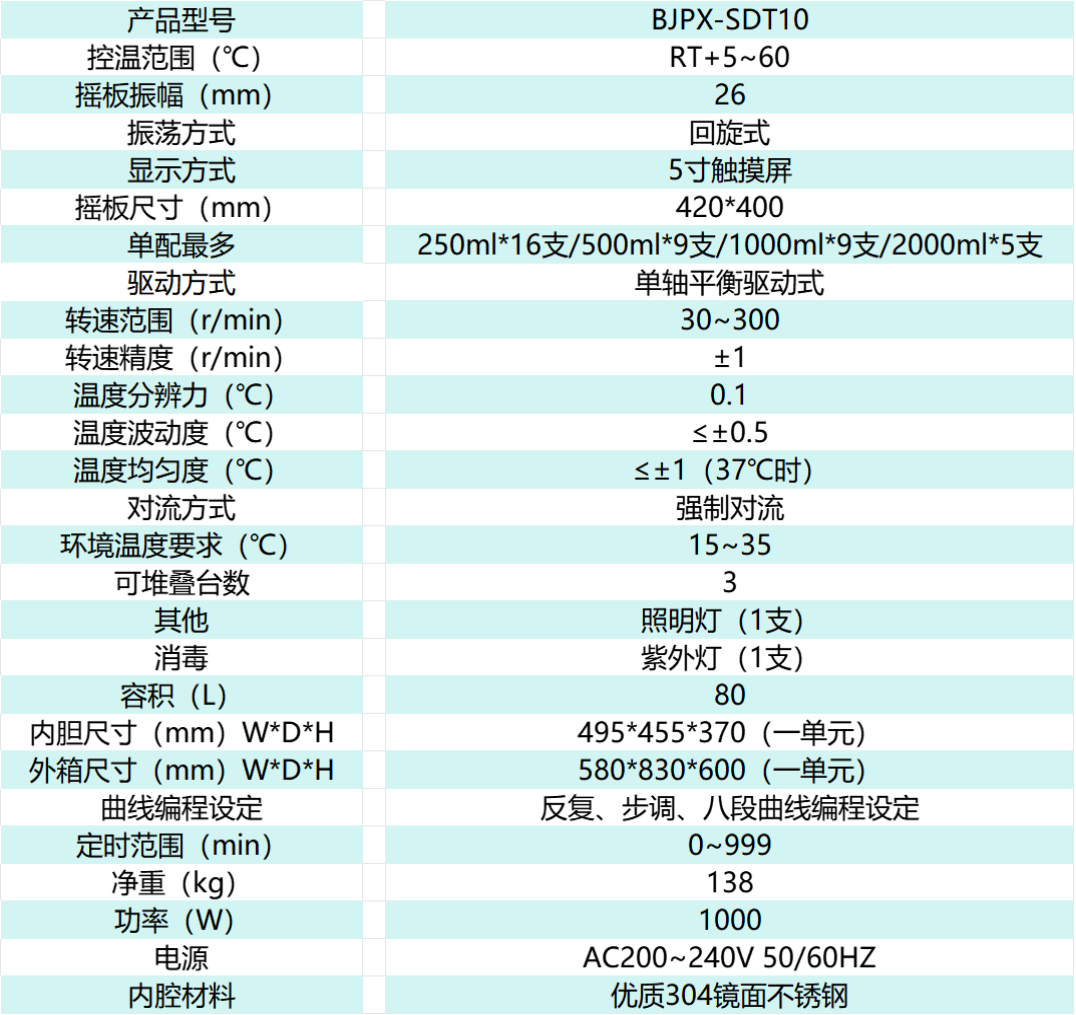

Product parameters

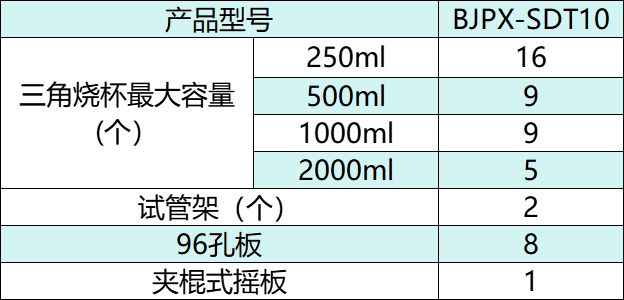

Fixture selection
Note: 1. The fixture selection table shows the maximum optional capacity, please choose according to your needs.
2. All the above data are subject to modification without prior notice, and our company reserves the right of final interpretation.
